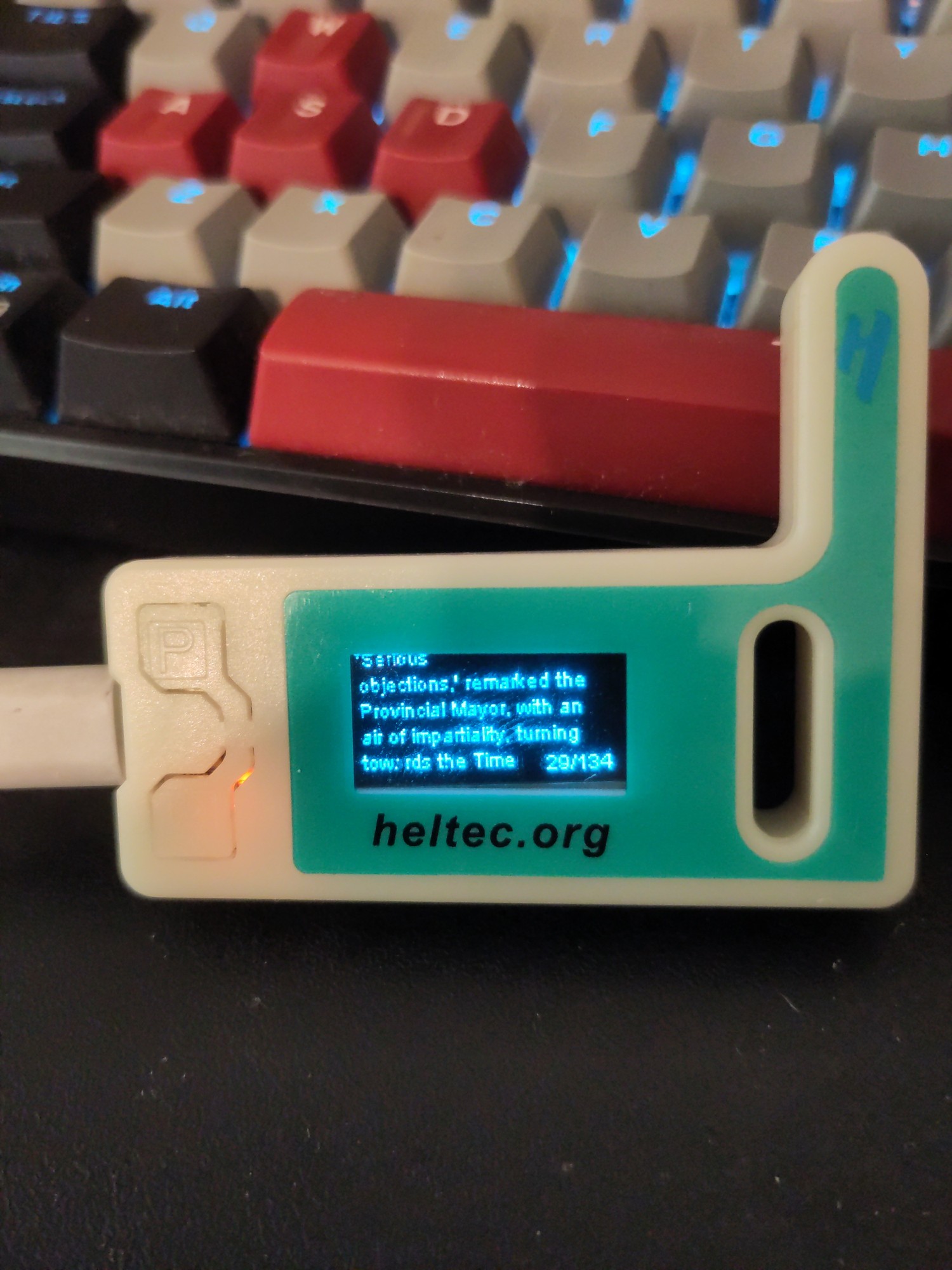

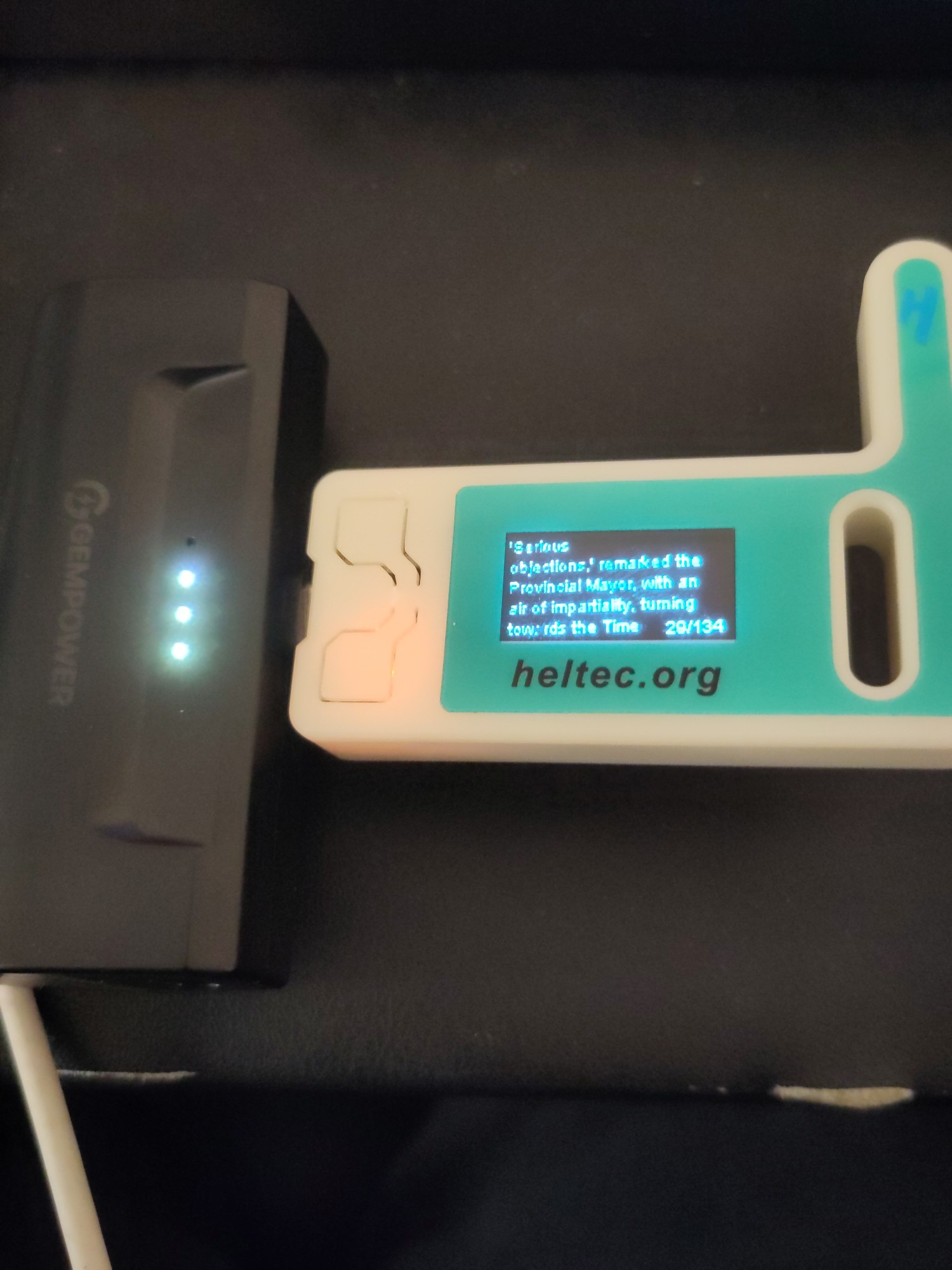

Its an ebook reader from an old heltek v3 that has been running meshtastic for a couple of years now.

Its been my debug node for a LONG time playing around with the alpha builds. Lately though I have some better hardware to debug/code with. I saw a project on youtube (cant find the link now?) involving a Heltek being a web server and a ebook reader. But with a eink display. So I spent an afternoon making something similar. The code is my own and its been a couple of decades since ive seriously done C++.

Things you can do with it:

  1. Read books! I mean thats why I made it.

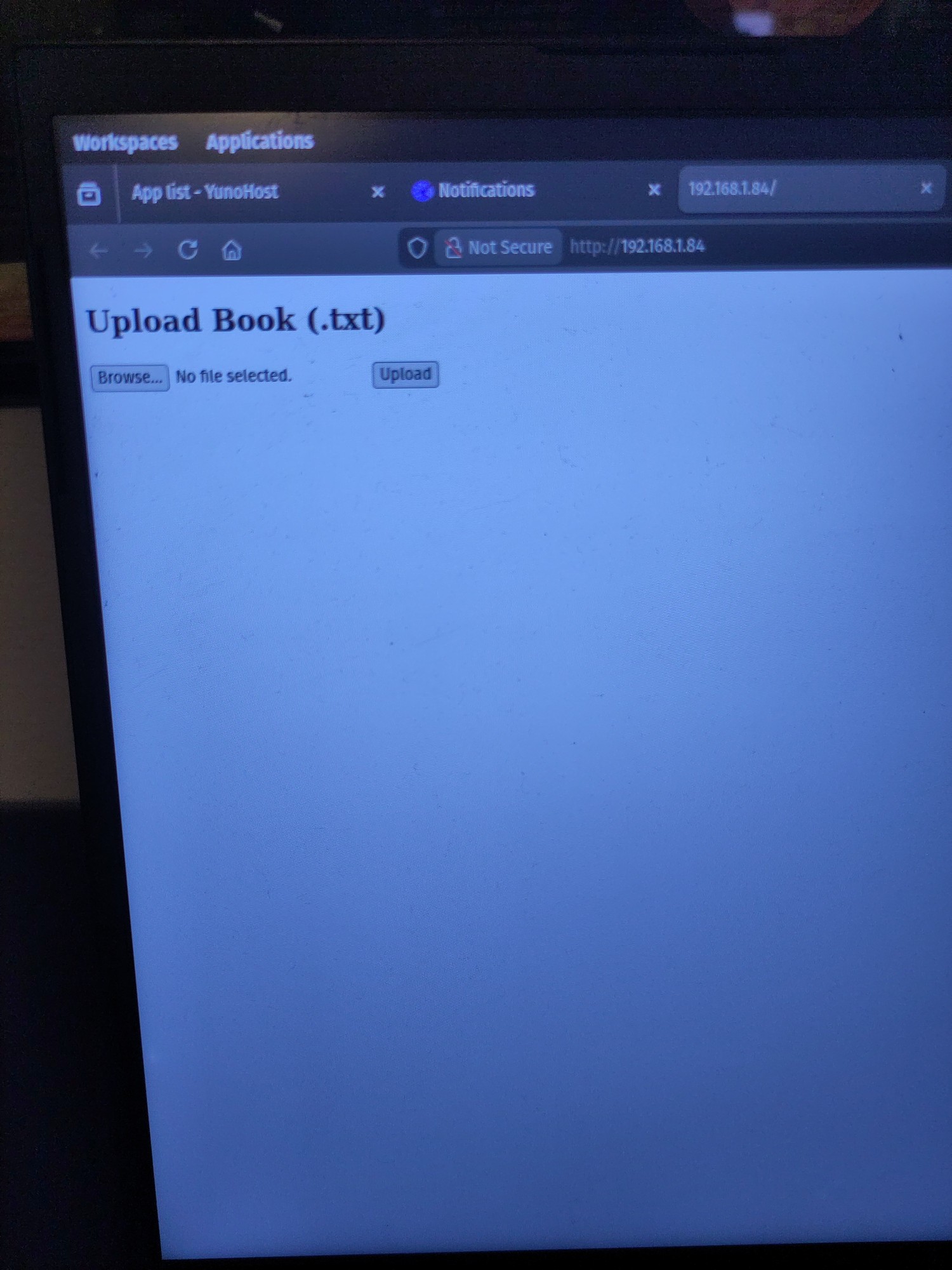

  2. Upload txt files via a web server! Very simple html to push a book to the device. Limit is currently 500kb so enough for a medium sized book. Technically this could be bigger, but I had some issues with guesstimating the amount of space I had. Enough for H.G. “The Time Machine” and otehr books. But not The Wandering Inn ;)
  3. Single click -> next page.
  4. Double click -> prev page
  5. Tripple click -> IP Address for the web server. Im tempted to make this also turn on the web server instead of having it auto-turn on in the setup. Or making this the area where admin things go.

Pictures




Code

#include <Wire.h>
#include "HT_SSD1306Wire.h"

#include <EEPROM.h>
#include <WiFi.h>
#include <WebServer.h>
#include <SPIFFS.h>

// ===== OLED =====
static SSD1306Wire display(0x3c, 500000, SDA_OLED, SCL_OLED, GEOMETRY_128_64, RST_OLED);
#define Vext 25 // adjust if needed

// ===== Button =====
#define BUTTON_PIN 0
bool lastButtonState = HIGH;
unsigned long lastClickTime = 0;
int clickCount = 0;
#define CLICK_DELAY 300  // ms for double/triple click

// ===== EEPROM =====
#define EEPROM_SIZE 4
#define PAGE_ADDR 0

// ===== WiFi Upload =====
// const char* ssid = "YOUR_WIFI";
// const char* password = "YOUR_PASSWORD";
WebServer server(80);
#define MAX_BOOK_SIZE 500000  // 500 KB limit
File bookFile;

// ===== Book Reading =====
int totalPages = 0;
int currentPage = 0;
#define PAGE_LINES 6   // lines per page
#define LINE_HEIGHT 10 // OLED font height

// ===== Functions =====
void VextON() {
  pinMode(Vext, OUTPUT);
  digitalWrite(Vext, LOW);
}

void drawPage(String pageText) {
  display.clear();
  display.setTextAlignment(TEXT_ALIGN_LEFT);
  display.setFont(ArialMT_Plain_10);
  display.drawStringMaxWidth(0, 0, 128, pageText);
  display.setTextAlignment(TEXT_ALIGN_RIGHT);
  display.drawString(128, 54, String(currentPage + 1) + "/" + String(totalPages));
  display.display();
}

String getPage(int pageNumber) {
  if (!SPIFFS.exists("/book.txt")) return ""; // No book
  File file = SPIFFS.open("/book.txt");
  if (!file) return "Error opening book";

  String page = "";
  int lineCount = 0;
  int startLine = pageNumber * PAGE_LINES;
  int currentLine = 0;
  while (file.available()) {
    String line = file.readStringUntil('\n');
    if (currentLine >= startLine && lineCount < PAGE_LINES) {
      page += line + "\n";
      lineCount++;
    }
    currentLine++;
    if (lineCount >= PAGE_LINES) break;
  }
  file.close();
  return page;
}

// ===== Web Server Upload Page =====
String uploadPage = R"rawliteral(
<!DOCTYPE html>
<html>
<body>
  <h2>Upload Book (.txt)</h2>
  <form method="POST" action="/upload" enctype="multipart/form-data">
    <input type="file" name="book">
    <input type="submit" value="Upload">
  </form>
</body>
</html>
)rawliteral";

void handleUpload() {
  HTTPUpload& upload = server.upload();
  if (upload.status == UPLOAD_FILE_START) {
    bookFile = SPIFFS.open("/book.txt", FILE_WRITE);
  }
  else if (upload.status == UPLOAD_FILE_WRITE) {
    if (upload.totalSize > MAX_BOOK_SIZE) {
      if (bookFile) bookFile.close();
      SPIFFS.remove("/book.txt");
      Serial.println("File too large!");
      return;
    }
    if (bookFile) bookFile.write(upload.buf, upload.currentSize);
  }
  else if (upload.status == UPLOAD_FILE_END) {
    if (bookFile) bookFile.close();
    Serial.println("Upload complete");
    // calculate total pages
    File f = SPIFFS.open("/book.txt");
    int lineCount = 0;
    while (f.available()) {
      f.readStringUntil('\n');
      lineCount++;
    }
    f.close();
    totalPages = (lineCount + PAGE_LINES - 1) / PAGE_LINES;
    currentPage = 0;
    EEPROM.write(PAGE_ADDR, currentPage);
    EEPROM.commit();
  }
}

// ===== Setup =====
void setup() {
  Serial.begin(115200);
  VextON();
  delay(100);

  pinMode(BUTTON_PIN, INPUT_PULLUP);

  display.init();
  display.setFont(ArialMT_Plain_10);

  EEPROM.begin(EEPROM_SIZE);
  currentPage = EEPROM.read(PAGE_ADDR);

  if (!SPIFFS.begin(true)) {
    Serial.println("SPIFFS mount failed");
  }

  WiFi.begin(ssid, password);
  while (WiFi.status() != WL_CONNECTED) delay(500);
  Serial.println(WiFi.localIP());

  server.on("/", HTTP_GET, []() {
    server.send(200, "text/html", uploadPage);
  });
  server.on("/upload", HTTP_POST, []() {
    server.send(200, "text/plain", "Upload complete");
  }, handleUpload);
  server.begin();

  // calculate total pages if book exists
  if (SPIFFS.exists("/book.txt")) {
    File f = SPIFFS.open("/book.txt");
    int lineCount = 0;
    while (f.available()) {
      f.readStringUntil('\n');
      lineCount++;
    }
    f.close();
    totalPages = (lineCount + PAGE_LINES - 1) / PAGE_LINES;
  }
}

// ===== Loop =====
void loop() {
  server.handleClient();

  bool currentButtonState = digitalRead(BUTTON_PIN);

  // detect press
  if (lastButtonState == HIGH && currentButtonState == LOW) {
    clickCount++;
    lastClickTime = millis();
  }
  lastButtonState = currentButtonState;

  // process clicks after delay
  if (clickCount > 0 && (millis() - lastClickTime) > CLICK_DELAY) {
    if (clickCount == 1) {
      if (SPIFFS.exists("/book.txt")) {
        currentPage = (currentPage + 1) % totalPages;
      }
    }
    else if (clickCount == 2) {
      if (SPIFFS.exists("/book.txt")) {
        currentPage--;
        if (currentPage < 0) currentPage = totalPages - 1;
      }
    }
    else if (clickCount >= 3) {
      // Triple click message
      display.clear();
      display.setTextAlignment(TEXT_ALIGN_CENTER);
      display.setFont(ArialMT_Plain_10);
      // display.drawString(64, 30, "Triple click detected!");
      display.drawString(64, 40, WiFi.localIP().toString());
      display.display();
      delay(1000); // show message for 1s
    }

    if (SPIFFS.exists("/book.txt")) {
      EEPROM.write(PAGE_ADDR, currentPage);
      EEPROM.commit();
    }

    clickCount = 0;
  }

  // Display page or IP if no book
  if (SPIFFS.exists("/book.txt")) {
    drawPage(getPage(currentPage));
  } else {
    display.clear();
    display.setTextAlignment(TEXT_ALIGN_CENTER);
    display.setFont(ArialMT_Plain_10);
    display.drawString(64, 20, "No book uploaded");
    display.drawString(64, 40, WiFi.localIP().toString());
    display.display();
  }

  delay(50);
}
